Description:

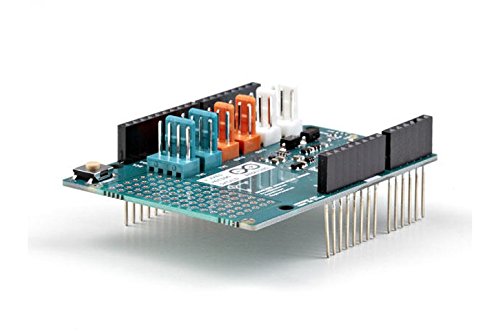

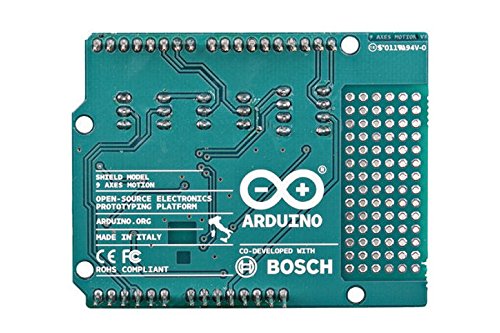

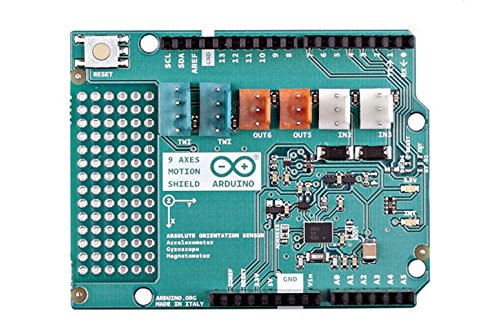

The Arduino 9 Axes Motion Shield is based on the BNO055 absolute orientation sensor from Bosch Sensortec GmbH
The BNO055 is a System in Package (SiP), integrating a triaxial 14-bit accelerometer, a triaxial 16-bit gyroscope with a range of ¡À2000 degrees per second, a triaxial geomagnetic sensor and a 32-bit microcontroller running the BSX3
0 FusionLib software
The sensor features three-dimensional acceleration, yaw rate and magnetic field strength data each in 3 perpendicular axes
It also provides the sensor fusion signals such asQuaternion
Euler angles
Rotation vector
Linear acceleration
Gravity vectorIn addition, it incorporates an intelligent interrupt engine, which allows for triggering interrupts based onslow or no motion recognition
any motion (slope) detection
high-g-detection
The shield is TinkerKit compatible, which means you can quickly create projects by plugging TinkerKit modules to the board
Parameter:
SPECIFICATION
Operating Voltage: 5V and 3.3V
Power Consumption: 50mW
Weight: 32g
Package List:
Arduino 9 Axes Motion Shield x1
